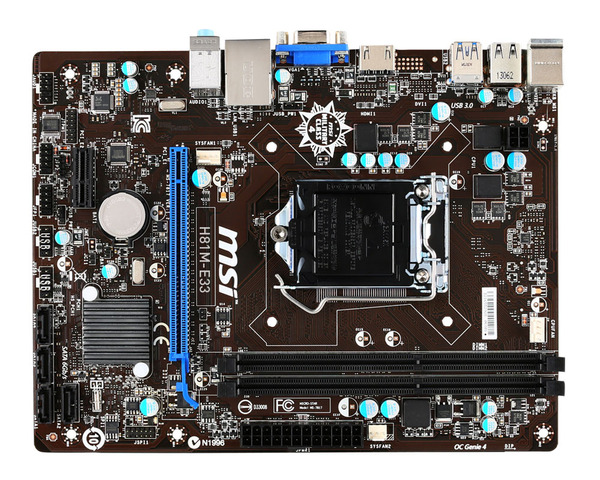

Características detalladas del producto:

CPU

• 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket

Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel® H81 Express

Main Memory

• Support two DDR3 DIMMs 1066/1333/1600 MHz, up to 16GB Max

- Supports Dual-Channel mode

Slots

• 1 x PCIe 2.0 x16 slot

• 1 x PCIe x1 slot

On-Board SATA

• SATAIII controller integrated in Intel® H81 chipset

- Up to 6Gb/s transfer speed.

- Supports two SATAIII ports (SATA1~2) by H81

• SATAII controller integrated in Intel® H81 chipset

- Up to 3Gb/s transfer speed.

- Supports two SATAII ports (SATA3~4) by H81

USB 3.0

• 2 x USB 3.0 ports on the back panel (rear x 2)

Audio

• Chip integrated by Realtek® ALC887

- Flexible 8-channel audio with jack sensing

- Compliant with Azalia 1.0 spec

LAN

• Supports Gb LAN 10/100/1000 by Realtek® RTL8111G

Internal I/O Connectors

- 1 x ATX 24-Pin power connector

- 1 x 4-pin ATX 12V power connector

- CPU x 1 / System x 2 FAN connectors

- 1 x Clear CMOS jumper

- 2 x SATAIII connectors

- 2 x SATAII connectors

- 2 x USB 2.0 connectors

- 1 x Serial port connector

- 1 x Trusted Platform Module (TPM) header

- 1 x Front Panel Audio connector

- 1 x Chassis Intrusion connector

Back Panel I/O Ports

- 1 x PS/2 keyboard port

- 1 x PS/2 mouse port

- 4 x USB 2.0 ports

- 2 x USB 3.0 ports

- 1 x RJ45 LAN Jack

- 1 x 3 in 1 audio jack

- 1 x Graphic Card port

- 1 x HDMI port

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.

• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

• 22.6cm(L) x 17.3cm(W) Micro-ATX Form Factor

Mounting

• 6 mounting holes

Características técnicas del producto:

CHIPSET: INTEL H81
FORMATO: MICRO ATX
HDMI: SI
IMAGEN SALIDA: GRAFICOS EN CPU/ D-SUB
MEMORIA MAXIMA: 16 GB
MULTI-GRAFICA: NO
N BANCOS DE MEMORIA: 2
N CONEXIONES SATA: 4
N USB 2.0: 4 TRASEROS, 2 INTERNOS
N USB 3.0: 2 TRASEROS
PCI: 1 PCIe x16, 1 PCIe x1
RAID: NO
SATA 3GB/s: 2
SATA 6GB/s: 2
SOCKET: INTEL LGA1150
TECNOLOGIA DE MEMORIA: DDR3
THUNDERBOLT: NO
TIPO DE RAID: NO
TIPO MEMORIA: 2 X DDR3 1600/1333/1066
USB 3.0: SI
USB3.0INTERNO: NO

Precio unitario: 48,64€

Precio anterior: 50,74€
